Completed Battery Cabinets
Exclusive to Wescor

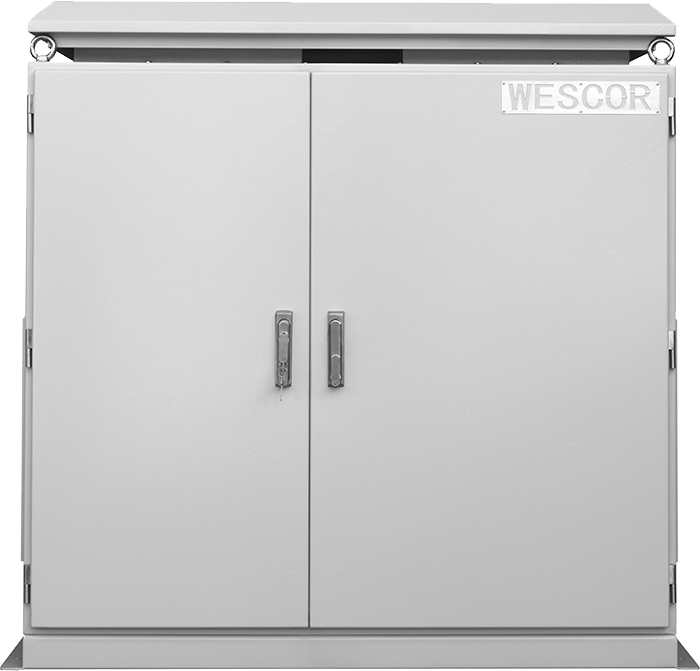

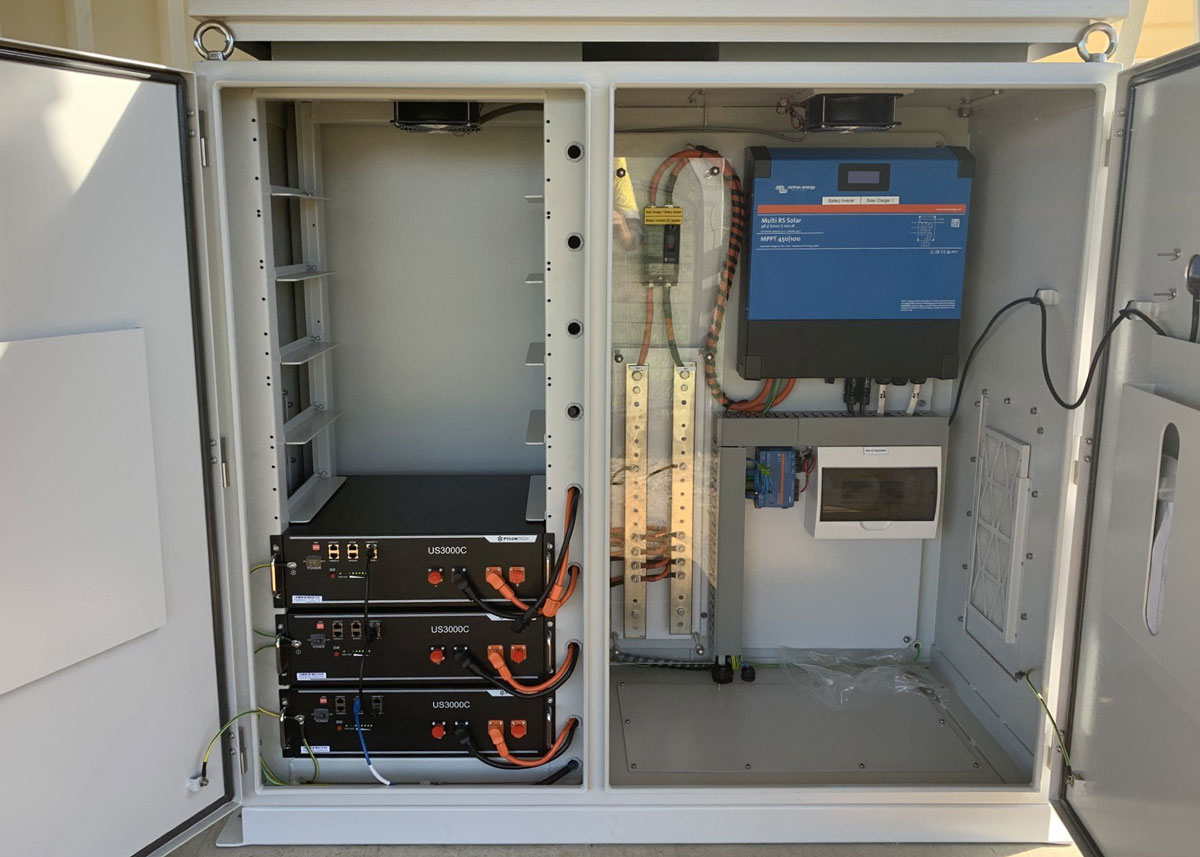

Wescor AL8
FEATURES:
• Up to 10KW’s of Battery Inverter capacity
• Up to 6KW’s of DC Solar Charger capacity
• Up to 10KW’s of AC coupled panels (e.g., Existing grid connect systems)
• 14KWh – 28KWh Lithium battery capacity (per cabinet)
Compliant to AS/NZS 5139 including complete segregation between batteries and equipment
Installation Indoor or Outdoor
Optional fan/filter kit for high temperature and high dust environments

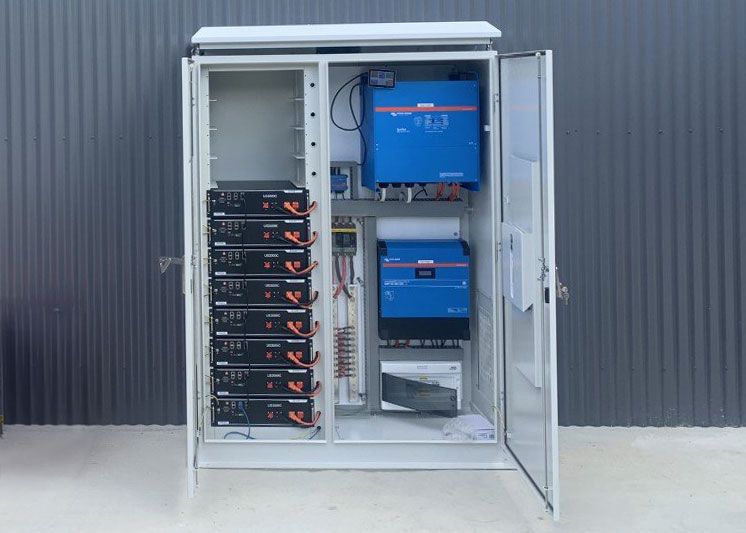

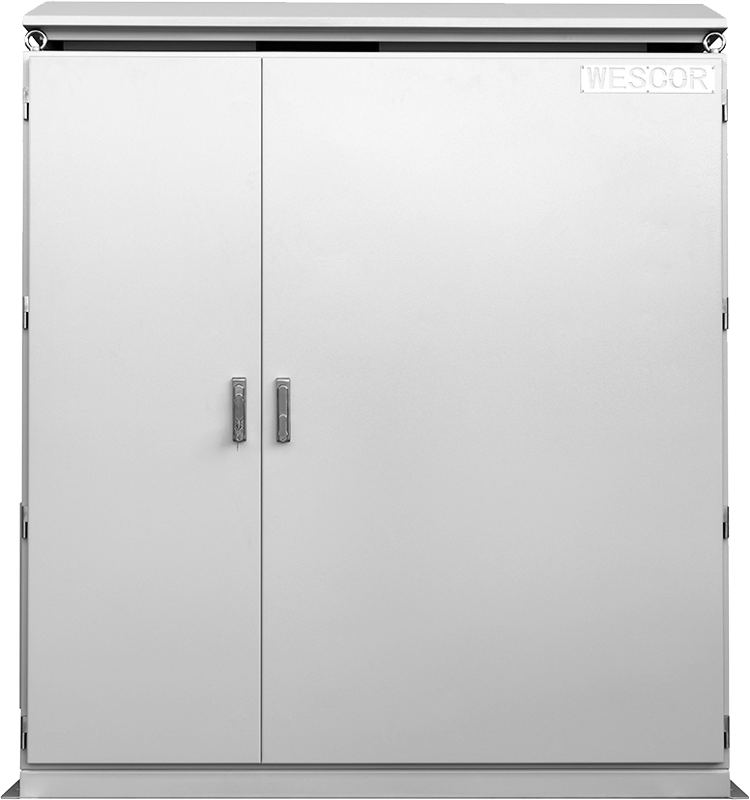

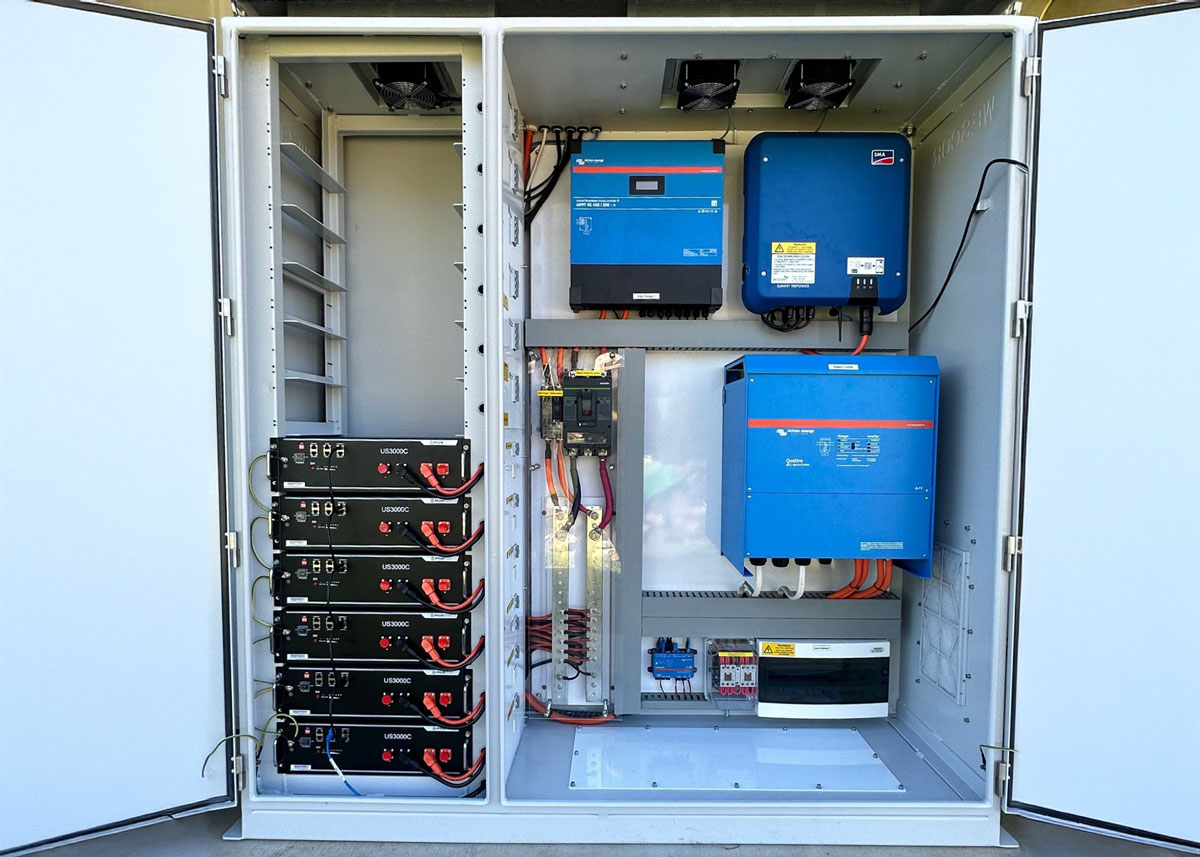

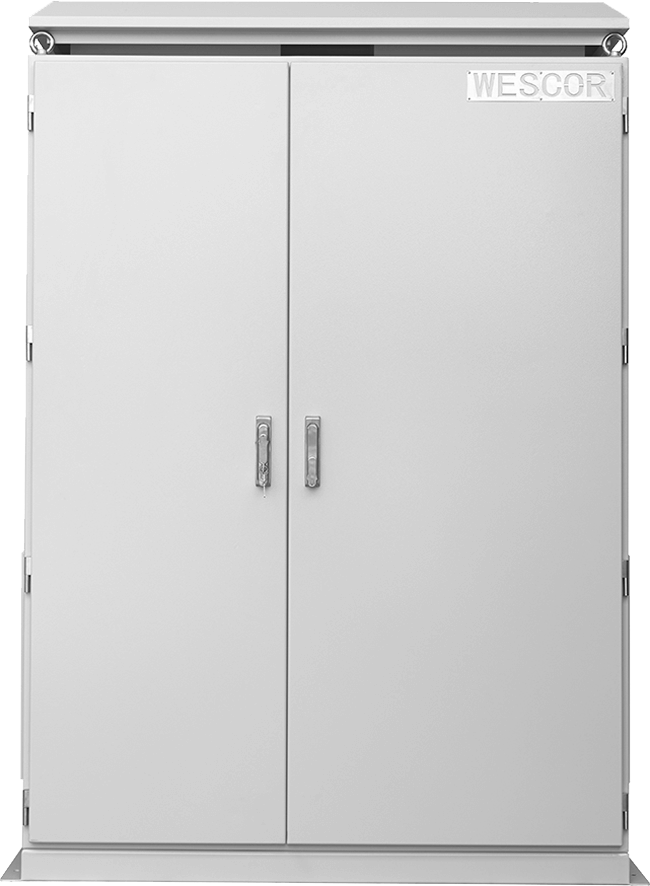

Wescor AL12
FEATURES:
Up to 10KW’s of Battery Inverter capacity
Up to 12KW’s of DC Solar Charger capacity
Up to 10KWs of AC coupled panels (e.g., Existing grid connect systems)
14KWh – 42KWh Lithium battery capacity (per cabinet)
Compliant to AS/NZS 5139 including complete segregation between batteries and equipment.
Installation Indoor or Outdoor
Optional fan/filter kit for high temperature and high dust environments
Wescor AL12+
FEATURES:
Up to 30KW’s of Battery Inverter capacity
Up to 24KW’s of DC Solar Charger capacity
Up to 30KW’s of AC coupled panels (e.g., Existing grid connect systems)
14KWh – 42KWh Lithium battery capacity (per cabinet)
Compliant to AS/NZS 5139 including complete segregation between batteries and equipment.
Installation Indoor or Outdoor
Optional fan/filter kit for high temperature and high dust environments
